How to view Microsensor Data

How to view Microsensor Data

Once your Microsensor is added to the LEXI Gateway, you can view its data via your LEXI app.

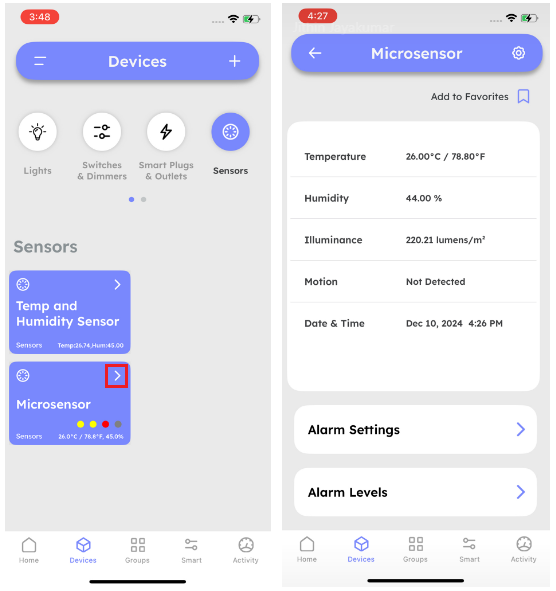

  • Open your LEXI app, and navigate to Devices -> Sensors.

  • Click on the right arrow “>” icon located on the upper right corner on the device card to see the data collected by your Microsensor.

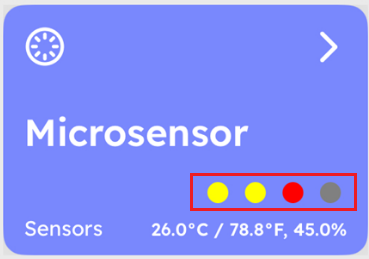

Microsensor data is also shown via the 4 dots on the Microsensor tile. Below is how to read the 4 dots (from right to left):



Dot 1 - Grey Color - Currently this dot does not have any use.

Dot 2 - Lux

     lux<= 15 : Green Color
     lux >= 15 && lux < 65 :Yellow color
     lux>= 65 && lux < 75 : Orange Color
     lux >= 75 : Red Color

Dot 3 - Hum

      hum <= 65 : Green Color
      hum >= 65 && hum < 85 :Yellow color
      hum >= 85 && hum < 95 : Orange Color
      hum >= 95 : Red Color

Dot 4 - Temperature


       temp <= 65  : Green Color
       temp >= 65 && temp < 85 :Yellow color
       temp >= 85 && temp < 95 : Orange Color
       temp >= 95 : Red Color
